Large ceramic processing machinery and equipment

Function: straight edge grinding, chamfering(30 degree, 45 degree and 60 degree), bottom chamfering, arc edge grinding, polishing(arc edge polishing, 45 degree edge polishing), grooving(anti-skid slot, flat slot, slot polishing), french edge, duckbill edge, concave-convex slot, nail edge, special-shaped line etc all kinds of ceramic tile processing

Product introduction: YTYXP-1200 14+7 ceramic tile Bullnose polishing machine is the latest product of ceramic processing machinery, which can grind edge, chamfer, bottom chamfer, groove and polish. It can process the raw brick into final product in one time. The machine are able to process stair step, stair brick, skirting, french edge, special-shaped waist line, duckbill edge etc all kinds of shape for ceramic tile and stone processing. This machine has the reasonable design, simple structure, advanced performance, easy operation, easy maintenance. Especially the polishing wheel takes abrasion pneumatic automatic compensation, thus improves the production automation degree, greatly improving the productivity, to bring you good economic benefit.

Technical parameters:

Serial No.	Item Name	Unite	Technical Parameter
1	Conveyor belt	mm	350
2	Numbers of polishing wheel	pcs	14
3	Diameter of polishing wheel	mm	95
4	Numbers of chamfering wheel	pcs	6 (edge trimming wheel x1, 45 degree chamfering wheel x2, 30 degree chamfering wheel x1, 60 degree chamfer wheel x1, bottom chamfering whee x1)
5	Diameter of grinding wheel	mm	150-200
6	Anti-skid grooving wheel, shaping wheel	pcs	2
7	Numbers of anti-skid slot	pcs	3月4日
8	Diameter of grooving blade	mm	150
9	Line polishing wheel	pcs	5
10	Workable width	mm	80-1200
11	Polishing speed	M/min	0-6
12	Workable thickness	mm	6月30日
13	Total power	kw	46
14	Power consumption	Kw/h	25
15	Air consumption	L/min	50
16	Size of machine	L*W*H	8.8*2.2*2.0
17	weight	kgs	About 7500

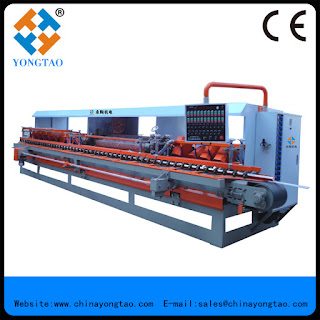

YTYXP-1200 14+7 ceramic tile Bullnose polishing machine
Product effect shape figure

Ceramic tile processing equipment has the following several kinds of configuration scheme:

1. YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQS-1-800 Manual tile cutting machine 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

2. YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

3. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQS-1-800 Manual tile cutting machine 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

4. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set

 YTYP-1200/7+14 Porcelain Tile Bullnose Machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YTQS-1-1200 Manual tile cutting machine 1 set
YJ-2015-5L 5 Axis Water Jet Tile Cutting Machine 1 set

6. YTYXP-1200 14+7 ceramic tile Bullnose polishing machine 1 set
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter 1 set
YJ-2015-5L 5 Axis Water Jet Tile Cutting Machine 1 set

Foshan Nanhai Yongtao Machinery and Electric Equipment Co., Ltd is a manufacturer specialized in ceramic tile mosaic cutting machine, ceramic tile mosaic chamfering machine, ceramic tile mosaic surface polishing machine, granular ceramic tile mosaic cutting machine, ceramic tile mosaic pallet cutting machine, ceramic tile mosaic making machine, ceramic tile mosaic trimming machine, ceramic tile mosaic processing machine, multi blades ceramic tile mosaic cutting machine, mosaic processing machinery, ceramic tile mosaic drying machine, ceramic tile mosaic net machine, ceramic tile mosaic clean machine. We are professional ceramic tile mosaic processing machine factory, welcome to inquiry.
